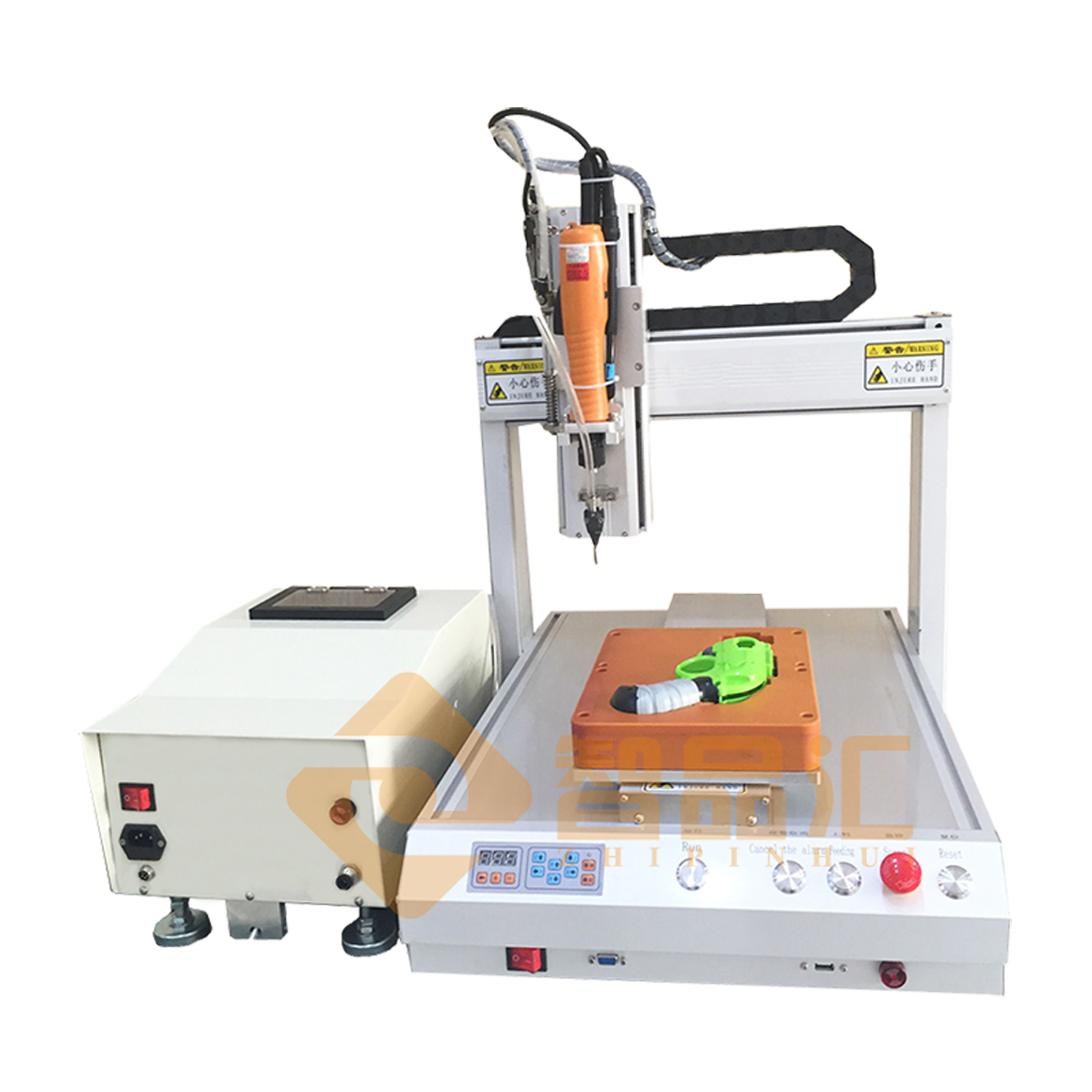

ZH-331C臺式螺絲機Desktop Screw Machine
螺絲機機器人Screw machine robot | ZH-331C 精準3軸 ZH-331C Accurate 3-axis |
加工范圍Processing range X/Y/ /Z/R | 300mm/300mm/100mm(可定制Customizable) |
Y軸平臺最大負載Y-axis platform maximum load | 15KG |
X/Y/Z軸移動速度(mm/sec) X/Y/Z-axis movement speed (mm/sec) | 0-1200 |
XYZ軸重復精度XYZ Axis Repeatability | <±0.02mm |
控制方式Control Mode | 工業控制卡PLC/Industrial Control Card |
編程方式Programming method | 觸摸屏Touch screen |
程序記錄容量Program recording capacity | 可存儲999組程序999 sets of programs can be stored |
馬達系統Motor system | 步進級精密馬達Stepping precision motors |
傳動方式Transfer method | 高精度同步帶+直線導軌High precision synchronous belt or precision grade wire rod + linear guide rail |
電批Screwdriver | 奇力速Kilews |
批頭Electric batch | 日本進口Import from Japan |
輸入電源Input power | AC220V(內部開關轉換Internal switch conversion) |
工作環境溫度Working temperature | 5-40℃ |
外形尺寸Dimensions | L680*W510*H820 |
機器重量Machine weight |
功能特點Functions and characteristics
1、高精準的電動起子，可控制扭矩提供給客戶穩定而高精度的品質保證。High-precision electric screwdriver ,can control torque to provide customers with stable and high-precision quality assurance.
2、電批帶螺絲滑牙、浮鎖檢測功能的系統：當螺絲打不良（漏鎖、滑牙、浮鎖）時，系統會自動暫停并且報警。Electric batch system with screw sliding and floating lock detection function: When the screw is bad (leak lock, slide tooth, float lock), the system will automatically pause and alarm.
3、鎖嘴采用進口高強度鋼，經熱處理硬度可達HRC60度，經久耐磨、耐用。The lock mouth imported high-strength steel, heat treatment hardness of up to HRC60 degrees, durable wear and durability.
4、分料器采用耐磨不銹鋼，分料定位精準。The distributor adopts wear-resistant stainless steel, and the material is accurately positioned.
5、本產品采用吹氣式鎖附效率高，且能快速排除螺絲故障，當故障排除后，能直接在原錯誤點繼續動作。This product uses blow-type lock with high efficiency, and can quickly eliminate the screw failure, when the fault is removed, can continue to action at the original point of error.
6、螺絲通用性強，更換分料器、鎖嘴、批頭即可適應M1.5~M6，長徑比大于1.3的螺絲鎖附。The screw has strong versatility, replace the feeder, lock nozzle, and the batch head can accommodate M1.5~M6, and the screw with the aspect ratio greater than 1.3.
智品匯售后服務
設備售后政策：
*設備保修期：一年
*售后電話：4008166687
1、我司組建了一批有豐富經驗的現場工程師和高級技師，對設備出現的任何問題都能夠在最快的時間內做出反應，進行售后維護。
2、新產品交付一周內，我司售后技術部的工作人員會根據客戶提供的聯系方式和地址，到客戶所在地對設備進行安裝售后培訓工作。
3、所有有關于產品質量投訴，在1小時內經予答復，省內3~5小時、省外24~48小時內趕到現場，并根據投訴的情況確定處理措施，進行售后維護。
4、為更好的解決客戶的困難和疑慮，我司承諾所有維修人員隨叫隨到。
5、保質期內有關于產品質量引發的費用，由我司承擔。
6、保質期內由于貴方的使用不當，或者是自然環境造成的我方免費提供維修，維修所用的材料和配件均只收成本價。
