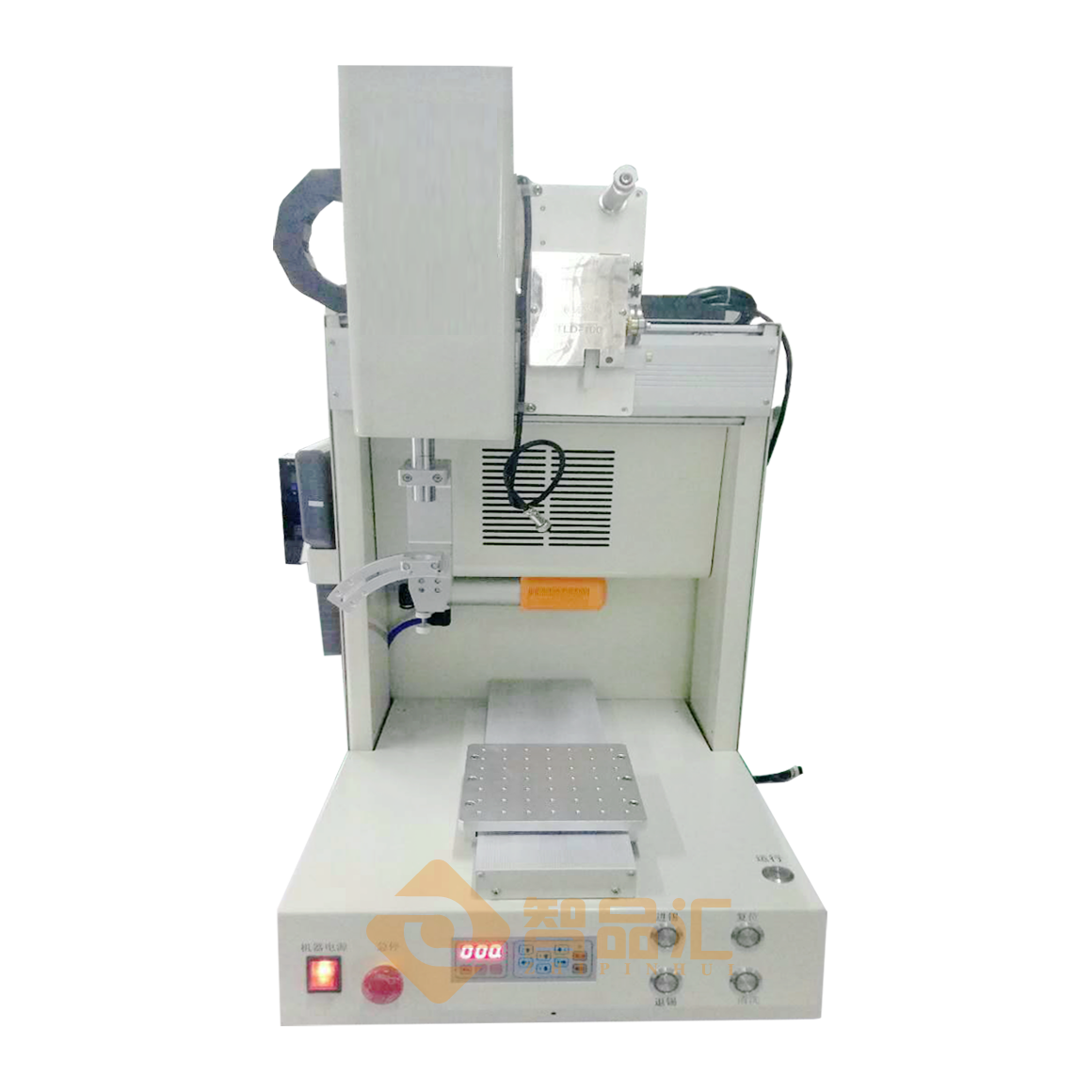

ZH-211R臺式焊錫機Desktop Soldering Robot
焊錫機器人Soldering Robot | ZH-221R 精準4軸Accurate 4-axis |
加工范圍Processing range X/Y/ /Z/R | 200/200/100/<300°(可定制Customizable) |
Y軸平臺最大負載Y-axis platform maximum load | 15KG |
X/Y/Z軸移動速度X/Y/Zaxis movement speed (mm/sec) | 0-1000 |
XYZ軸重復精度XYZ Axis Repeatability | <±0.02mm |
編程方式Programming method | 示教盒/觸摸屏Teaching box/Touch screen |
控制方式Control mode | 工業控制卡Industrial Control Card |
馬達系統Motor system | 步進級精密馬達Stepping precision motors |
傳動方式Transfer method | 同步帶+ HIWIN精密直線導軌Synchronous belt + HIWIN precision linear guide rail |
焊臺功率Soldering station power | 150W |
溫度范圍Temperature range | 0-500° |
錫絲范圍Applicable tin wire | 0.6-1.2MM |
錫煙處理Tin smoke treatment | 60W抽系統Extraction System |
輸入電源Input power | |
工作環境溫度Working temperature | 5-40℃ |
產品尺寸Dimensions | 450*400*750 |
功能特點Functional characteristics
1、 單Y/雙Y可以根據加載自動上料和下料機構，實現一只流作業。Single Y/double Y can be automatically loaded and unloaded according to the loading mechanism to realize one stream operation.
工業自動破錫機，精準送錫。Industrial automatic tin-breaker, delivery tin accurately.
2、 內設堵錫、卡錫、無錫線檢測功能。It is equipped with tin plug, tin stuck and tin line detection function.
3、 專利型真空清洗烙鐵頭機構,解決傳統吹氣清洗所造成烙鐵頭上的殘錫無法清洗干凈而產生焊接不良或是焊點污穢，機器清潔或錫渣回收能力大大提高。The patented vacuum cleaning iron head mechanism solves the problem that the residual tin on the soldering iron head caused by traditional blow cleaning cannot be cleaned, resulting in bad welding or solder joint contamination, and the machine cleaning or tin slag recovery capability is greatly improved
4、 焊錫錫煙可以根據通過管道排放或直接過濾，解決焊錫工種職業病。Solder tin smoke can be eliminated through the pipeline or directly filtered to solve occupational diseases in soldering jobs.
6、簡單易學，一般人3小時內可以教會(huì )。Easy to learn, most people can learn within 3 hours.
智品匯售后服務
設備售后政策：
*設備保修期：一年
*售后電話：4008166687
1、我司組建了一批有豐富經驗的現場工程師和高級技師，對設備出現的任何問題都能夠在最快的時間內做出反應，進行售后維護。
2、新產品交付一周內，我司售后技術部的工作人員會(huì )根據客戶提供的聯系方式和地址，到客戶所在地對設備進行安裝售后培訓工作。
3、所有有關于產品質量投訴，在1小時內經予答復，省內3~5小時、省外24~48小時內趕到現場，并根據投訴的情況確定處理措施，進行售后維護。
4、為更好的解決客戶的困難和疑慮，我司承諾所有維修人員隨叫隨到。
5、保質期內有關于產品質量引發的費用，由我司承擔。
6、保質期內由于貴方的使用不當，或者是自然環境造成的我方免費提供維修，維修所用的材料和配件均只收成本價。
