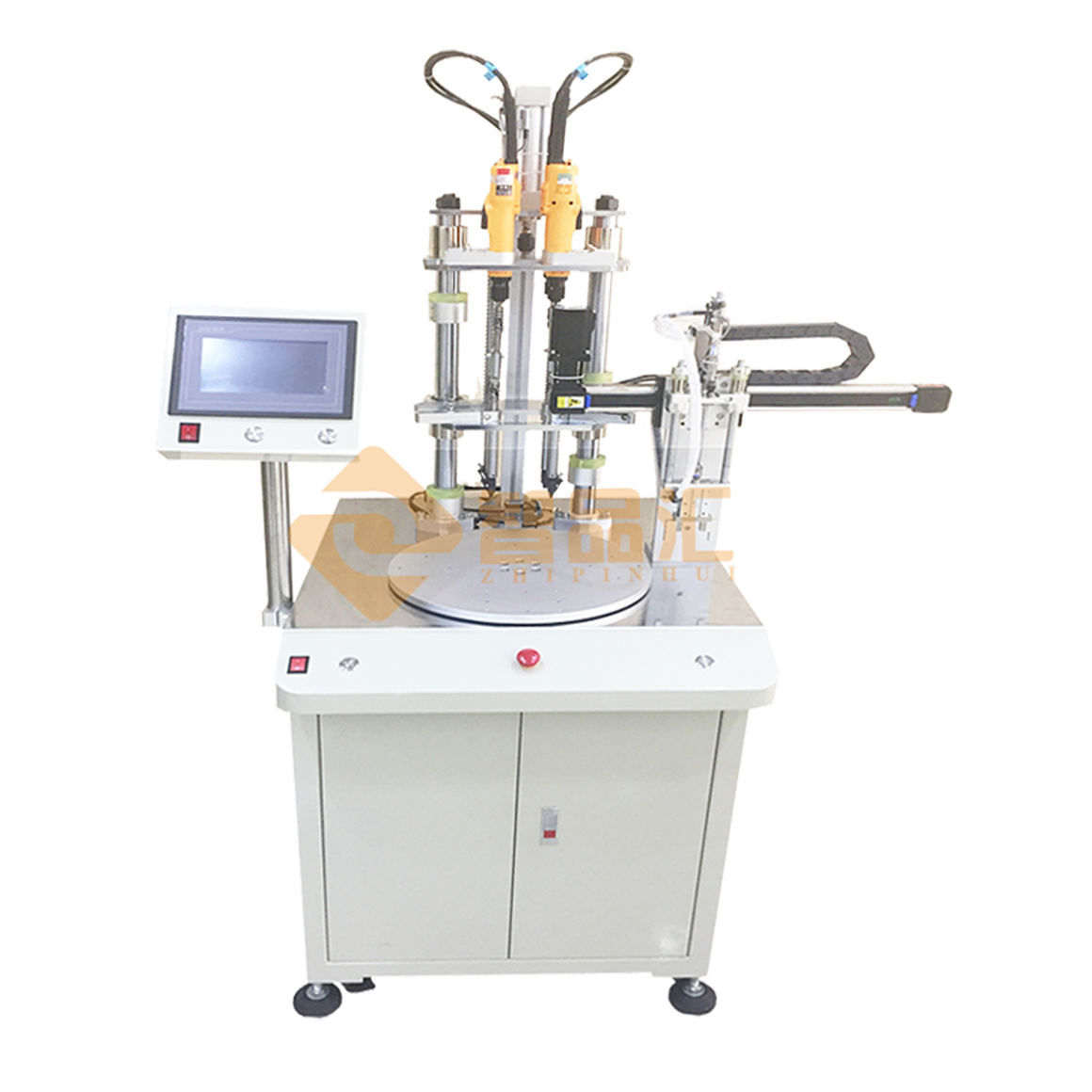

ZH-L380-DZ立式轉盤多軸螺絲機Vertical Turntable Multi-Axis Screw Machine
功能特點Functions and characteristics
1. 鎖付軸數2-12軸可選。The number of lock axes 2-12 is optional.
2. 漏鎖/浮鎖/滑牙檢測客戶可以選配。Latch/float/slip detection customers can choose.
3. 可調整主軸位置和高低，適應不同產品的快速更換。Can adjust the spindle position and height to adapt to the rapid replacement of different products.
4. 可配合流水線實現全自動作業。Can realize automatic operation with the assembly line.
5. 鎖付速度:1-2秒/PCS，視螺絲長短而定。Locking speed: 1-2 seconds / PCS, depending on the length of the screw.
6. 扭力調整:每個軸可單獨調整。Torque adjustment: Each axis can be adjusted individually.
7. 適合鏍絲： M1---M8。Suitable for reeling: M1---M8.
產品規格Product Specification
型號Model | ZH-L380-DZ | ZH-L580-DZ | |
外形尺寸Dimensions | 1100mm*800mm *1900mm | 1250mm*950mm *1900mm | |
機器毛重Machine Gross Weight | 200KG | 230KG | |
機器構造 Machine Construction | 盤面尺寸Disk size | 直徑Diameter 550 | |
電源Power supply | AC 220V 50HZ | ||
功率Power | 0.3KW | ||
用氣量Air consumption | 15m3/hour | ||
機架Frame | 鋼板臺面，鋁合金機架Steel plate table, aluminum alloy rack | ||
Control Instructions | 主機程序控制 Host program control | PLC 控制PLC control | |
人機界面 Human-machine interface | 臺灣威綸Taiwan Weinview | ||
機器啟動Machine start | 雙手啟動模式Hands-on mode | ||
報警Alarm | 報警燈閃爍和蜂鳴器嘯叫Alarm lamp flashing and buzzer howling | ||
連接Connection | 萬向結&聯軸器組件 Universal Joint & Coupling | 萬向結連接Universal connection | |
Screw-feeding machine | 自動送釘機 Automatic nailing machine | 放在機器旁邊或下面Placed next to or below the machine | |
自動送釘機數量Number of automatic nail feeders | 按照鎖螺絲的多少配備，一臺機可送1-4或多顆螺絲According to the number of lock screws, a machine can send 1-4 or more screws | ||
螺絲批Screwdriver | 臺灣奇力速電批 Taiwan KILEWS electric screwdriver | 臺灣奇力速電批Taiwan KILEWS electric screwdriver | |
適用范圍 Scope of application | 最小螺絲孔距 Minimum screw hole spacing | 20mm，最大孔距無限制Maximum hole spacing is unlimited | |
儀器售后政策：
*儀器保修期：一年
*售后電話：4008166687
我們提供部分設備的遠程安裝與調試，提供上門安裝維修服務，但收取一定的服務費；有基礎的我公司將免費提供技術指導，由需方調試安裝。
